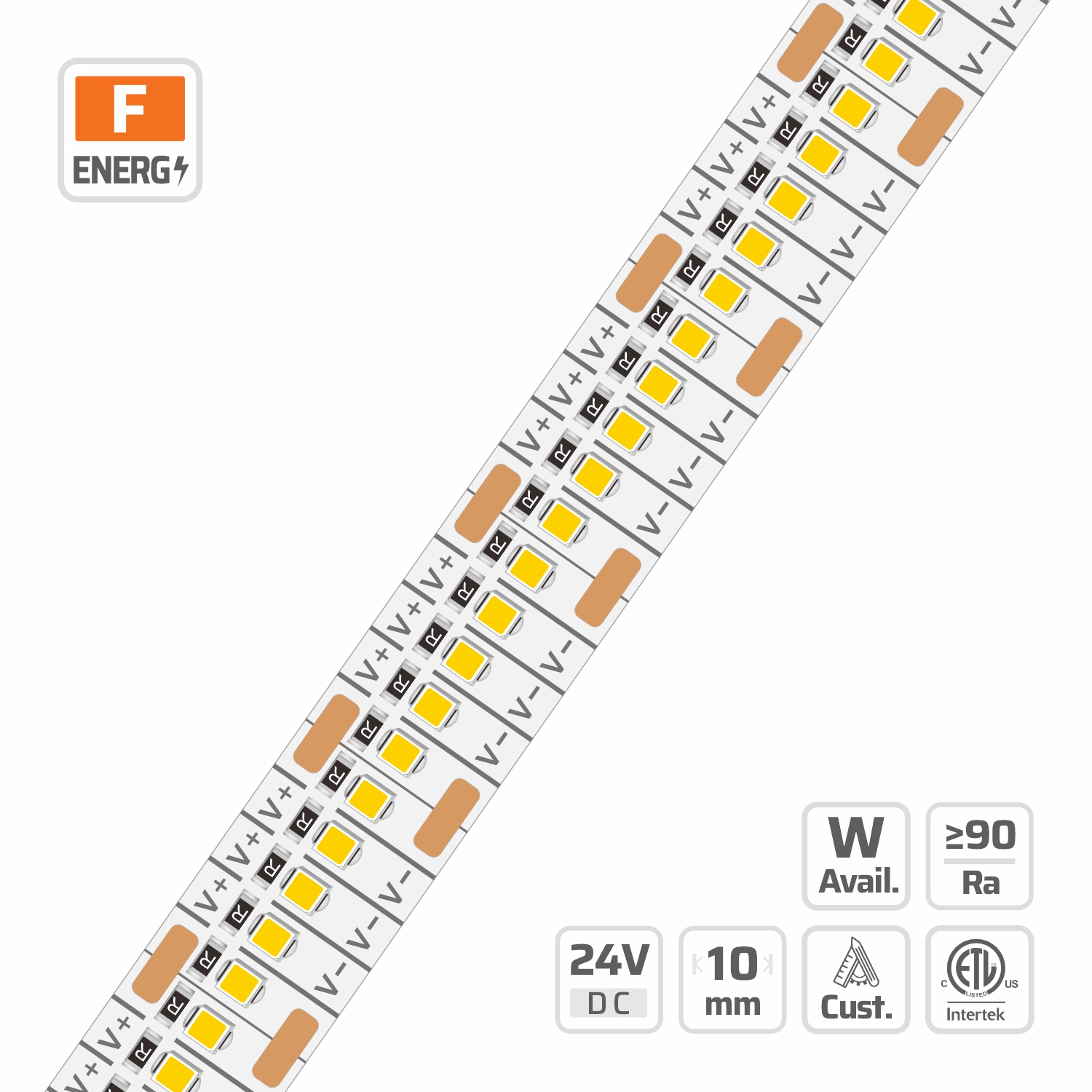

10mm | 24V | 350LEDs | 2.8cut | #11480 Ultra-density Micro-Cut LED strip light
Model: 11480
Overview
The DENO LED model 11480 is an ultra-density micro-cut LED strip, featuring 350 LEDs/m and a 2.8mm cuttable segment for exceptional design flexibility. Boasting a high CRI>90, it delivers superior color rendering suitable for backlighting, under-cabinet lighting, and architectural integrations. Its robust pure copper LED frame and 2oz copper PCB ensure durability and excellent heat dissipation. DENO LED provides high-quality solutions for lighting designers, architects, and...
Description
10mm | 24V | 350LEDs | 2.8cut | #11480 Ultra-density Micro-Cut LED strip light Strong pure copper LED frame, and diameter>1mm, 99.9%-purity gold wire encapsulation, can reduce damage to the LED in different applications CRI>90 SMD2220 LED Strips is outfitted with extremely bright LED chips and strong adhesive backing. Special heat resistant PCB layout, copper layer 2Oz that make sure lower voltage drop and excellent heat dissipation 3 SDCM one BIN only, these strips are great for providing elegant and discreet lighting The flexible design of LED strips allows for bright lighting almost any space you can imagine,which is quite suitable for back lighting and general lighting in aluminum frames or under cabinet, and is commonly used by architects and lighting designers in professional installations
Specifications
| ledQty | 350LEDs/m |
|---|---|
| partNo | DL-F20A175V24-11480-* |
| smdType | 2216 |
| cuttable | 5LEDs/14.28mm |
| dimmable | Yes |
| ledPitch | 2.8mm |
| pcbWidth | 10 |
| beamAngle | 120° |
| lengthMax | 5m |
| copperFoil | 2oz |
| powerRange | 2.8~18W |
| circuitType | C.V. |
| inputVoltage | 24V |
| operatingTemperature | -20°C ~ +50°C |
Frequently Asked Questions
What are the key advantages of the 2.8mm cuttable design?
The 2.8mm cuttable design (5LEDs/14.28mm actually) offers unprecedented precision for customized lengths, ensuring perfect fit and minimal waste in intricate lighting installations.
Is this LED strip compatible with standard dimming systems?
Yes, the 11480 Ultra-density Micro-Cut LED strip is fully dimmable, allowing for flexible control over light intensity to suit various application needs.
What certifications does this product hold for professional use?
DENO LED products adhere to strict industry standards. Specific certifications for the 11480 are available upon request to meet project compliance requirements.
Can DENO LED provide custom lengths or solutions for large projects?
DENO LED specializes in B2B solutions and can accommodate custom length requirements and offers project-specific support for large-scale installations.
